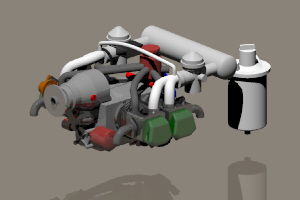

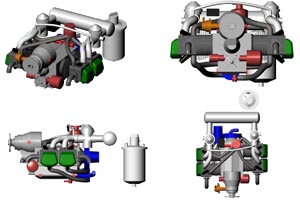

A 3D CAD model of Rotax 912 engine
Select textlink using right mousebutton, and use Save Link as.. option.

This is a modified version of the model I have used while designing PIK-27 towplane. Which has 914. You may download and use it as you wish. I take no responsibility for its accuracy for any purpose (legal stuff). But the attachment points are correctly positioned and accurate. I.e. this is meant to be an engineering model. If you wish some other format, send a note and I'll see what can be done.



Rhinoceros Rhinoceros 3 model (the original). File size 1724 kb
DXF Converted to DXF format. File size 3672 kb
IGES Converted to IGES format. File size 2735 kb
OBJ Converted to OBJ format. File size 3377 kb

A 3D CAD model of Rotax 914 engine
Select textlink using right mousebutton, and use Save Link as.. option.

This is model I have used while designing PIK-27 towplane. Which has 914. You may download and use it as you wish. I take no responsibility for its accuracy for any purpose (legal stuff). But the attachment points are correctly positioned and accurate. I.e. this is meant to be an engineering model. If you wish some other format, send a note and I'll see what can be done.

Rhinoceros Rhinoceros 3 model (the original). File size 6 mb
STP Converted to Step format. File size 857 kb
