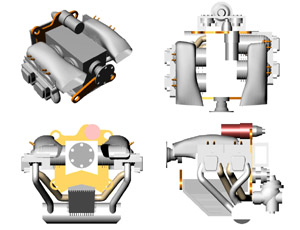

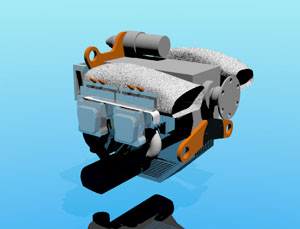

A 3D CAD model of Jabiru 2200 engine
Select textlink using right mousebutton, and use Save Link as.. option.

You may download and use it as you wish. I take no responsibility for its accuracy for any purpose (legal stuff). But the attachment points are correctly positioned and accurate. Also the outside envelope is close to real. I.e. this is ment to be an engineering model. If you wish some other format, send a note and I'll see what can be done.



Rhinoceros Rhinoceros 4 model (the original). File size 716 kb
IGES Translation File size 1387 kb
Step Translation File size 580 kb

Sorry, that link pointed to Rotax file. It is now corrected (14.11.2010).
